SR8823D – Large Swim Spa | 3-Person | 22 Massage Jets | Dual 3.73HP Propeller Pumps

Graphic
Detail

SR8823D – Large Swim Spa | 3-Person | 22 Massage Jets | Dual 3.73HP Propeller Pumps

Product Detail
Product Specifications

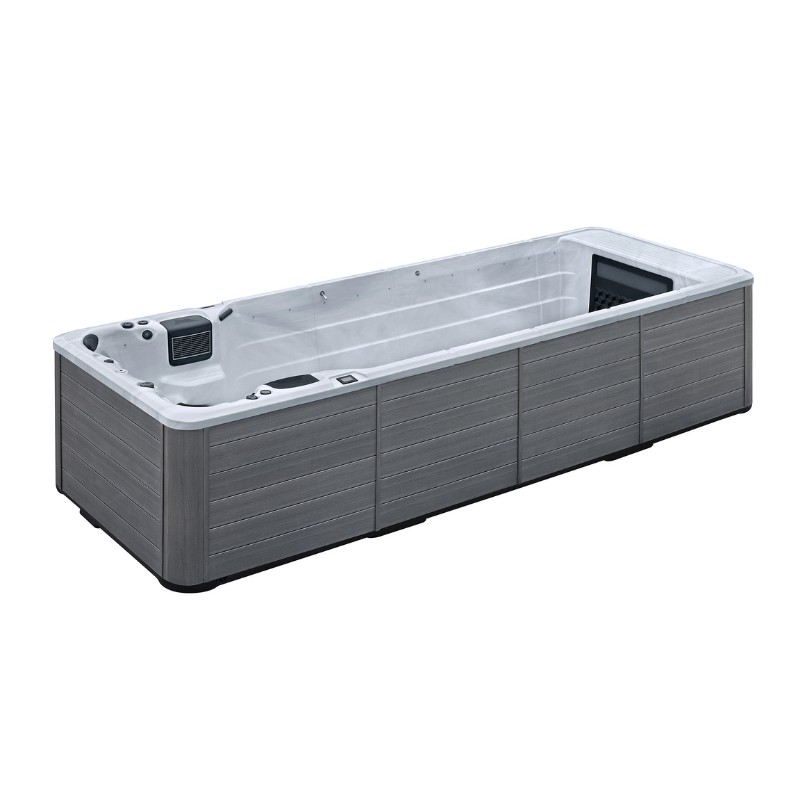

SR8823D – 6.8M Modular Swim Pool with Propeller System and 3 Seats

The Sunrans SR8823D is a 6.8 meter modular swim pool designed for homeowners who want a compact yet powerful endless swimming experience combined with soothing hydrotherapy. With three comfortable seats, this unit offers a dedicated swimming lane driven by a high efficiency propeller system. Whether you swim laps for daily fitness or relax in warm massage jets after exercise, the SR8823D fits perfectly into medium sized backyards.

The integrated propeller system delivers a strong adjustable current for endless swimming, powered by a 5.6KW propulsion unit. A single 3.0HP jet pump serves the spa section with 22 massage jets in various sizes and styles, including direct jets and flower core jets. The America Balboa control system with an easy to read panel manages the swim current, jet pressure, heating, and one large pool bottom LED light. The entire unit runs on 380V 50Hz three phase power.

Constructed with Aristech acrylic available in four colors and supported by a 304 stainless steel frame, the SR8823D is built for durability. The filtration system includes dual filter housings with 100 square feet effective area and two ozone nozzles plus an ozone generator for cleaner water. Additional features include two waterfalls, a small fountain, Bluetooth speakers, LED water level lights, and skirt options in four colors. A full insulation package and ABS base ensure energy efficiency and stable installation. A water sports kit with paddles and fishing rod adds extra fun.

Key Selling Points

1. Spacious 6.8-Meter Swim Spa Design

6800×2280×1500mm Dimensions: Compact size ideal for medium backyards without sacrificing swimming space
3-Person Seating Capacity: Comfortable seating for family members
Perfect for Backyards: Ideal for exercise, relaxation, and entertainment

2. Powerful Propeller Swim System

5.6KW Integrated Propulsion Unit: Generates a smooth, adjustable swimming current
Adjustable Current: Customizable resistance for all fitness levels
Swim-in-Place Technology: Exercise without leaving home

3. Comprehensive Hydrotherapy System

22 Total Massage Jets: Full-body massage coverage
Wide Variety of Jet Types: Includes direct, rotating, and flower core jets
Targeted Massage: Deep tissue relief for back, shoulders, and muscles

4. Premium Features Included

Dual Waterfalls: Stunning visual water features
Small Fountain: Decorative water display
Large LED Pool Light: Beautiful underwater illumination
Ozone Water Treatment: Ozone generator plus two ozone nozzles for reduced chemical usage

5. Quality Construction

US Aristech Acrylic Shell: Premium acrylic available in T01, T04, T10, T12 colors
#304 Stainless Steel Support Frame: Rust-proof support structure for long-term durability
Durable Construction: Built to withstand outdoor conditions

6. Efficient Filtration & Sanitation

Dual Filter Housings: 100 sq. ft. effective filtration area
200mg/h Ozone Generator: Chemical-free water sanitation
Clean, clear water with minimal maintenance

7. Complete Package

Modular Design: Easy installation and setup
Ready to Use: Everything included for immediate enjoyment

Product Specifications

Item	Specification
Model	SR8823D
Pool Type	Spa Pool / Modular Swim Pool with Propeller System
Occasion	Gym, Garden, Playground
Seating Capacity	3 Persons
Lounge	None
Overall Dimensions	6800 × 2280 × 1500mm
Packing Dimensions	6900 × 2380 × 1650mm
Dry Weight	1260kg
Container Load	1 pc / 40ft
Shell Material	US Aristech Acrylic
Shell Colors	T01, T04, T10, T12 Available
Support Frame	#304 Stainless Steel
Control System	Babao GS510dz with V1801d Panel
Power Supply	380V / 50Hz Three Phase
Heater	3KW / 220-240VAC
Warranty	2-5 Years (subject to different parts)

Propulsion & Pump System

Component	Specification
Propeller Swim System	5.6KW Integrated Propulsion Unit
Circulation Pump	Integrated system

Electrical System

Item	Specification
Control System	Babao GS510dz with V1801d Panel
Power Supply	380V / 50Hz Three Phase
Heater	3KW / 220-240VAC
Pool Bottom LED Light	1 PC (Large)

Jet Configurations

Jet Type	Quantity
Total Jets	22 pcs
Jet Types Included	Direct Jets, Rotating Jets, Flower Core Jets

Filtration & Water Treatment

Item	Specification
Filter Type	Dual Filter Housings
Effective Filtration Area	100 sq. ft.
Ozone Generator	Ozone generator with 2 ozone nozzles

Features

Feature	Quantity / Specification
Waterfalls	2 pcs
Fountain	1 pc (Small)
Pool Bottom LED Light	1 pc (Large)
Support Frame	#304 Stainless Steel
Shell Material	Aristech Acrylic
Skirt Colors	T01, T04, T10, T12
ABS Base	Included
