SR8821D – Swim Spa with Dual Zone | 3 Seats + Swim Area | 30 Massage Jets
Product Overview
SR8821D Modular Swim Spa – Full 8.8-Meter Swim Lane with Powerful Propeller System & Comprehensive Hydrotherapy

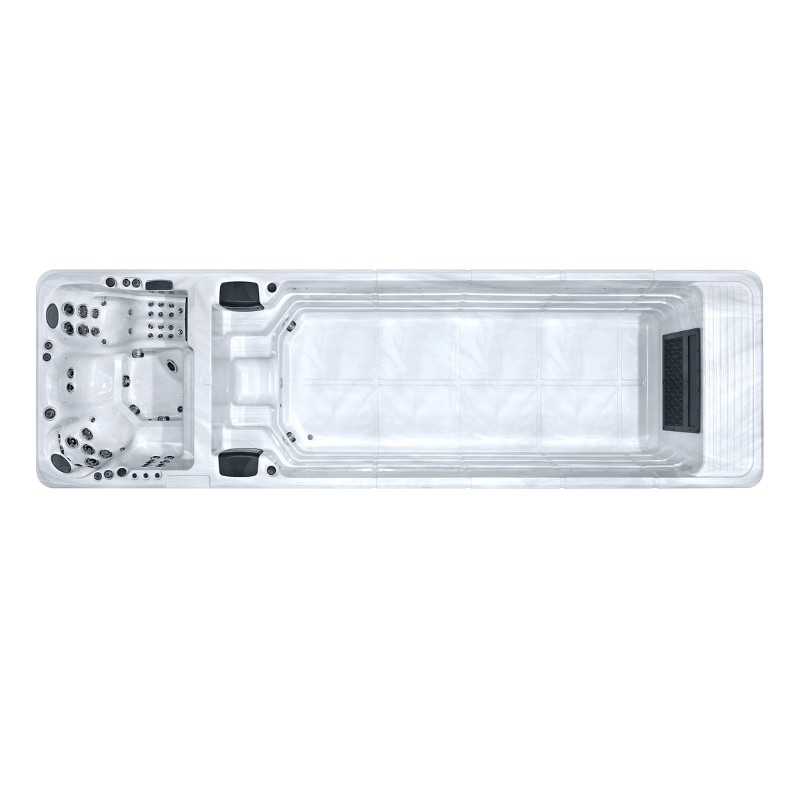

The SR8821D is a premium modular swim spa designed to deliver a true swimming experience combined with luxurious hydrotherapy. Measuring 8800×2280×1500mm, this swim spa features a full-size swimming lane for serious lap training and family fun, comfortably accommodating 3 persons plus 1 dedicated lounger. Equipped with a powerful 5.6KW integrated propeller swim system for smooth, adjustable current, 47 massage jets, dual independent control systems, and a suite of premium water features including a waterfall, three rising fountains, and two large LED pool lights, the SR8821D offers the ultimate in-home aquatic wellness experience without compromising on quality or performance.
Key Selling Points
1. Full 8.8-Meter Swim Lane Design
- 8800×2280×1500mm Dimensions: Full-size swimming lane for serious lap training and family fun
- 3 Seats + 1 Lounger: Comfortable seating for three plus a dedicated lounger for relaxation
- Perfect for Fitness Enthusiasts: Ideal for daily exercise, lap swimming, and leisure
2. Powerful Propeller Swim System
- 5.6KW Integrated Propulsion Unit: Generates a smooth, adjustable swimming current
- Adjustable Current: Customizable resistance for all fitness levels from beginners to athletes
- Embedded Design: Seamless integration for sleek appearance
3. Comprehensive Hydrotherapy System
- 47 Total Massage Jets: Extensive full-body massage coverage
- Wide Variety of Jet Types: Includes direct, rotating, and flower core jets
- Targeted Muscle Relief: Deep tissue massage for back, shoulders, and entire body
4. Dual Independent Control Systems
- Separate Controls for Swim Current and Spa Functions: Dedicated panels for easy operation
- Babao BP6013G2 with TP600A Panel: Advanced spa control
- Babao BP200G1 with TP500 Panel: Pool control with integrated 3KW heater
- User-Friendly Interfaces: Easy read panels for all functions
5. Premium Water Features
- Waterfall: Elegant visual water feature
- 3 Rising Fountains: Stunning decorative water display
- 2 Large LED Pool Lights: Beautiful underwater illumination for evening use
6. Quality Construction
- US Aristech Acrylic Shell: Premium acrylic available in T04, T10, T12 colors
- #304 Stainless Steel Frame: Rust-proof support structure for long-term durability
- Durable Build: Built to withstand outdoor conditions and heavy use
7. Efficient Filtration & Sanitation
- Dual Filter Housings: 100 sq. ft. effective filtration area
- Two Ozone Nozzles: Enhanced chemical-free water sanitation
- Clean, clear water with minimal maintenance
8. Complete Package
- Modular Design: Easy installation and setup
- Ready to Use: Everything included for immediate enjoyment
Product Specifications
| Item | Specification |
|---|---|
| Model | SR8821D |
| Pool Type | Spa Pool / Modular Swim Pool with Propeller System |
| Occasion | Gym, Garden, Playground |
| Seating Capacity | 3 Persons + 1 Lounger |
| Lounge | 1 Person |
| Overall Dimensions | 8800 × 2280 × 1500mm |
| Transport Package | Film + Foam + Carton + Wooden Case |
| Dry Weight | (Not specified) |
| Container Load | Estimated 1 pc / 40ft |
| Shell Material | US Aristech Acrylic |
| Shell Colors | T04, T10, T12 Available |
| Frame Material | #304 Stainless Steel |
| Control System (SPA) | Babao BP6013G2 with TP600A Panel |
| Control System (Pool) | Babao BP200G1 with TP500 Panel (includes 3KW heater) |
| Power Supply | 380V / 50Hz Three Phase |
| Heater | 3KW / 220-240VAC |
| Warranty | 2-5 Years (subject to different parts) |
Propulsion & Pump System
| Component | Specification |
|---|---|
| Propeller Swim System (Embedded) | 5.6KW / 380V 50Hz Integrated Propulsion Unit |
| Circulation Pump | Integrated system |
Electrical System
| Item | Specification |
|---|---|
| Control System (SPA) | Babao BP6013G2 with TP600A Panel |
| Control System (Pool) | Babao BP200G1 with TP500 Panel (includes 3KW heater) |
| Power Supply | 380V / 50Hz Three Phase |
| Heater | 3KW / 220-240VAC |
| Pool Bottom LED Lights | 2 PCS (Large) |
Jet Configurations
| Jet Type | Quantity |
|---|---|
| Total Jets | 47 pcs |
| Jet Types Included | Direct Jets, Rotating Jets, Flower Core Jets |
Filtration & Water Treatment
| Item | Specification |
|---|---|
| Filter Type | Dual Filter Housings |
| Effective Filtration Area | 100 sq. ft. |
| Ozone Water Treatment | Two ozone nozzles for reduced chemical usage |
Features
| Feature | Quantity / Specification |
|---|---|
| Waterfall | 1 pc |
| Rising Fountains | 3 pcs |
| Pool Bottom LED Lights | 2 pcs (Large) |
| Support Frame | #304 Stainless Steel |
| Shell Material | Aristech Acrylic |
| Shell Colors | T04, T10, T12 |
| ABS Base | Included |
| Dual Control Systems | Separate controls for swim current and spa functions |
