Inside the Factory: The Step-by-Step Manufacturing Process of a Sunrans Spa

Article Keywords: Hot Tub Manufacturing Process, Quality Swim Spa Factory, China Spa Manufacturer

Abstract: For B2B distributors and large-scale wellness developers, the integrity of a product is only as strong as the factory that builds it. Beyond the sleek aesthetics of a finished unit lies a complex, multi-stage engineering journey. This article takes you behind the scenes of Sunrans—a premier China spa manufacturer—to explore our step-by-step manufacturing process. From sourcing premium American Aristech Acrylic to our signature 48-hour rigorous wet testing, discover the industrial precision and quality control standards that define a world-class quality swim spa factory.

1. Introduction: Why the Manufacturing Process Defines Your Investment

In the global wellness industry, 'quality' is often used as a marketing buzzword. However, for professional importers and spa dealers, quality is a quantifiable metric found on the factory floor. A swim spa or hot tub is a high-pressure vessel that must withstand thousands of kilograms of water weight, extreme temperature fluctuations, and chemical exposure for decades.

At Sunrans, we believe in radical transparency. By understanding our hot tub manufacturing process, our partners gain the confidence that every unit shipped is built to survive the harshest climates, from the freezing winters of Switzerland to the scorching summers of Australia. Our three massive production bases are not just assembly lines; they are centers of material science and structural engineering.

2. Stage 1: Sourcing and Preparing Premium Raw Materials

Every masterpiece begins with the finest canvas. For a high-end spa, that canvas is the shell material.

2.1 The Aristech Acrylic Standard

Sunrans exclusively partners with Aristech Acrylics LLC from the United States. As a leading China spa manufacturer, we refuse to compromise on the base material. Aristech Acrylic is globally recognized for its superior UV resistance, high-gloss finish, and antimicrobial properties. Before production begins, each acrylic sheet undergoes a rigorous inspection for surface consistency and color depth.

2.2 Material Pre-heating

The process starts in a climate-controlled environment where the acrylic sheets are pre-heated to a precise temperature. This ensures the material becomes pliable enough for moulding while maintaining its molecular density, preventing 'thin spots' that could lead to future structural failure.

3. Stage 2: Precision Vacuum Moulding

Once the acrylic is heated to its optimal state, it is moved to our heavy-duty vacuum forming machines.

3.1 Advanced Mould Technology

Sunrans utilizes high-precision moulds that are polished to a mirror finish. This ensures that every curve, ergonomic seat, and jet recess is replicated with 100% accuracy across every production run.

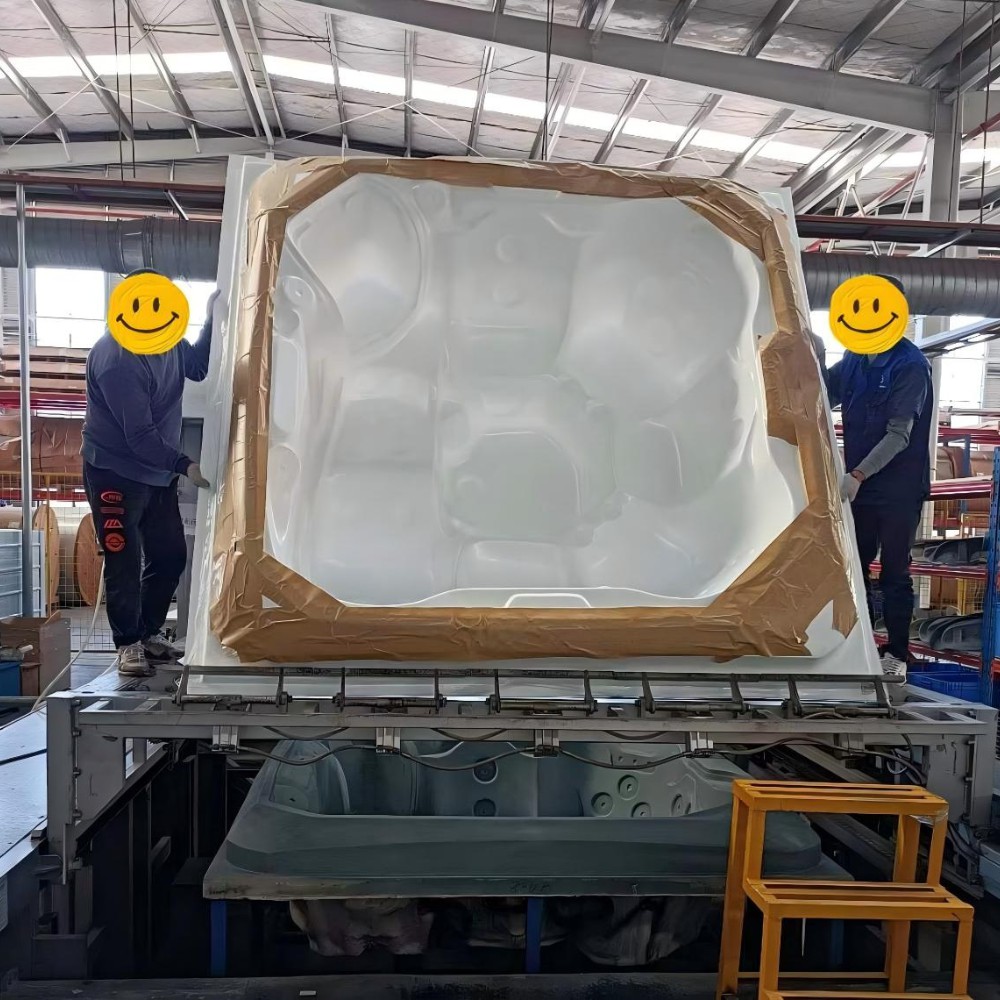

3.2 Vacuum Forming Execution

Using a combination of high-pressure vacuum suction and specialized cooling fans, the acrylic sheet is pulled into the mould. This stage is critical for maintaining the uniform thickness of the shell, a hallmark of a quality swim spa factory. Our engineers monitor the cooling rate to prevent internal stress within the material, ensuring the shell remains dimensionally stable for a lifetime.

4. Stage 3: The Reinforcement Layer (Vinylester & Fiberglass)

An acrylic shell alone cannot support the weight of several tons of water. The true strength of a Sunrans spa lies in its reinforcement.

4.1 The Vinylester Secret

Before applying standard fiberglass, Sunrans applies a specialized layer of Vinylester resin. This layer acts as an essential moisture barrier, preventing 'blistering' or osmotic delamination that often plagues lower-quality manufacturers.

4.2 Multi-Layer Fiberglass Spraying

We then apply multiple layers of high-grade fiberglass. For our standard hot tubs, the reinforcement thickness reaches 2-3cm, while for our swim spas, it is increased to 3-4cm to handle the immense hydraulic pressure. This reinforcement is hand-rolled by skilled technicians to eliminate air bubbles, ensuring a monolithic, rock-solid structure.

5. Stage 4: Structural Integrity with #304 Stainless Steel

While the shell provides the shape, the frame provides the skeleton.

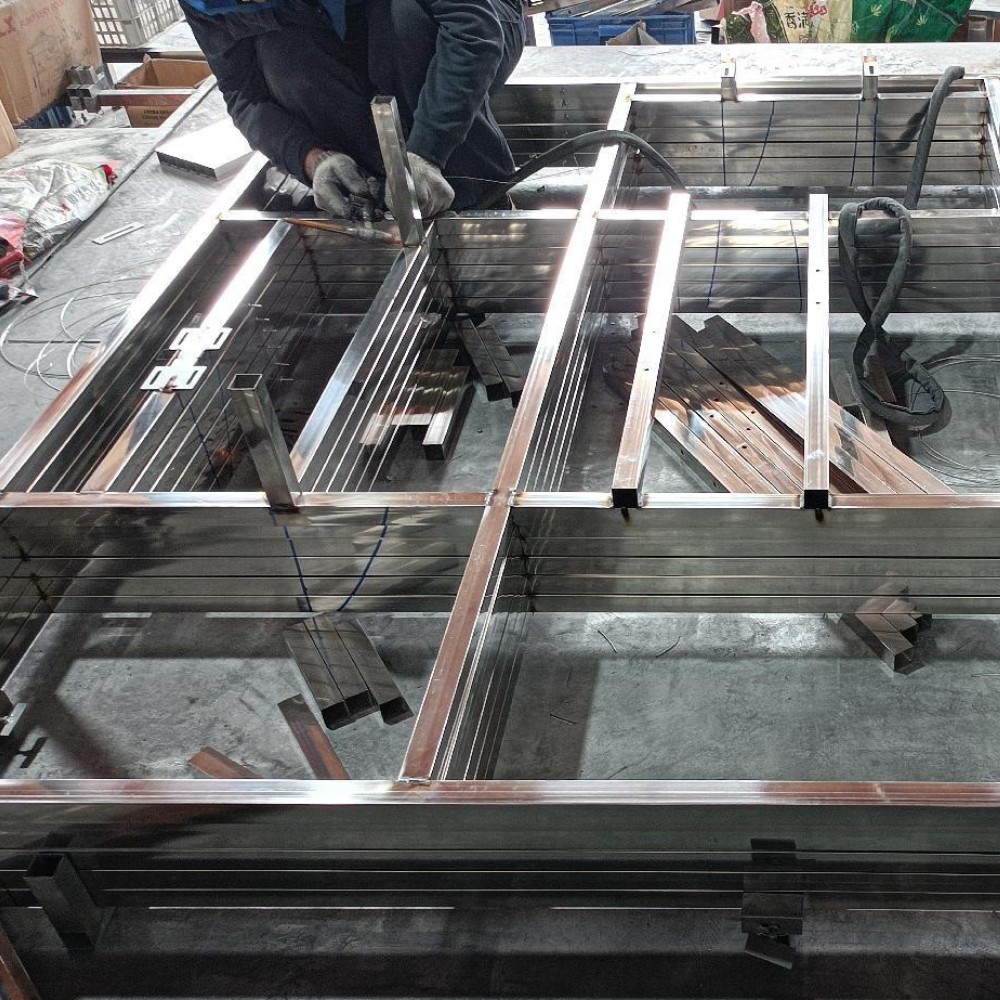

5.1 Corrosion-Resistant Framing

Sunrans utilizes heavy-duty #304 Stainless Steel for our support frames. Unlike galvanized or wooden frames used by some competitors, #304 stainless steel offers total resistance to rust and corrosion, even in high-humidity or coastal environments.

5.2 Thicken Support Architecture

Our frames are designed with a 'thicken support' philosophy. We add extra vertical pillars under the seating areas and the footwell—the areas of highest stress—to ensure zero deflection when the spa is fully occupied.

6. Stage 5: Thermal Efficiency and Insulation

In 2026, energy efficiency is a top priority for B2B buyers. Sunrans addresses this through our 'Total Insulation' system.

6.1 Polyurethane Foam Application

We spray a 3cm thick layer of high-density polyurethane foam onto the shell. This material is widely regarded as the best heat reservation material for cold climates. It traps the heat generated by the pumps and transfers it back into the water, significantly lowering monthly electricity bills for the end-user.

7. Stage 6: Precision Trimming and Automated Drilling

Once the shell is fully cured and reinforced, it moves to the trimming station.

• Edge Trimming: Robotic and manual tools are used to trim the excess acrylic and fiberglass, creating a clean, professional edge for cabinet mounting.

• Drilling Holes: Using laser-guided templates, our technicians drill the holes for jets, suctions, and lighting. Precision here is paramount; even a 1mm deviation can cause a leak. As a quality swim spa factory, we maintain tolerances that meet international aerospace standards.

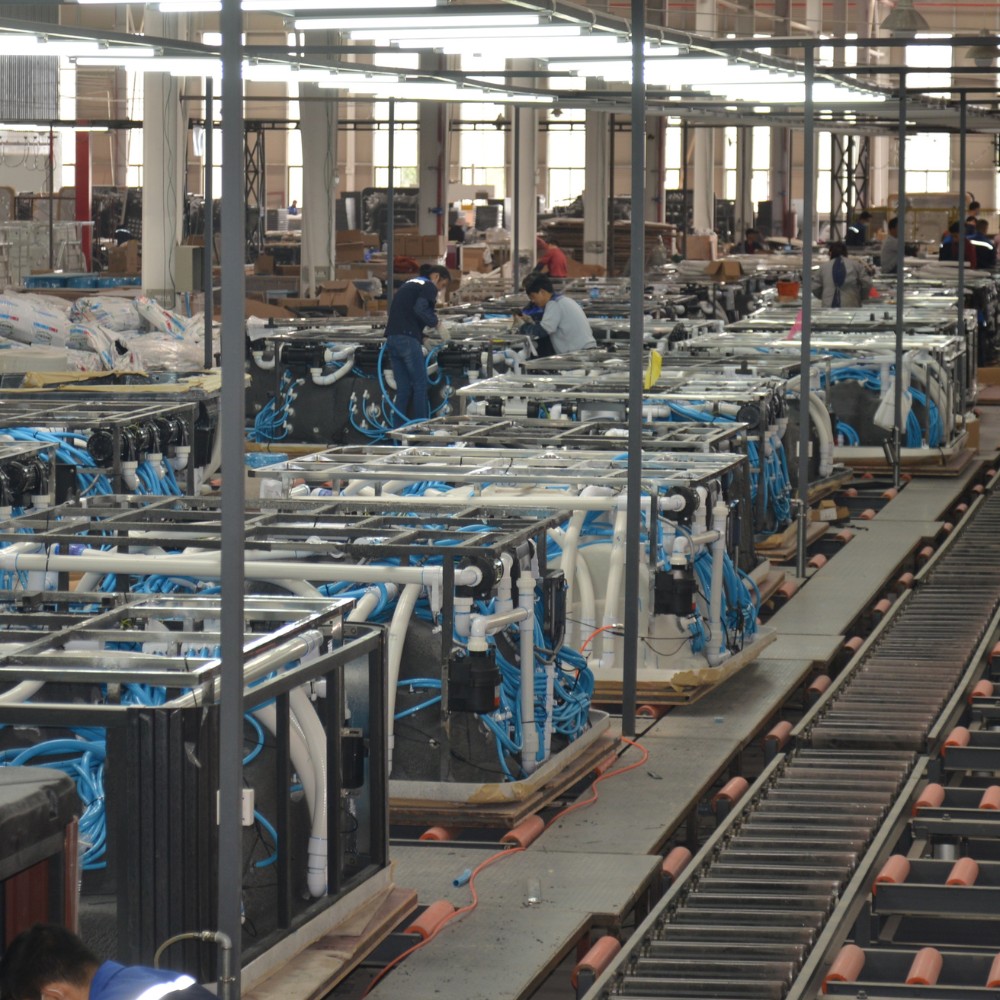

8. Stage 7: The Art of Assembly (Plumbing and Electrics)

This is where the spa comes to life. Our assembly line is divided into specialized stations.

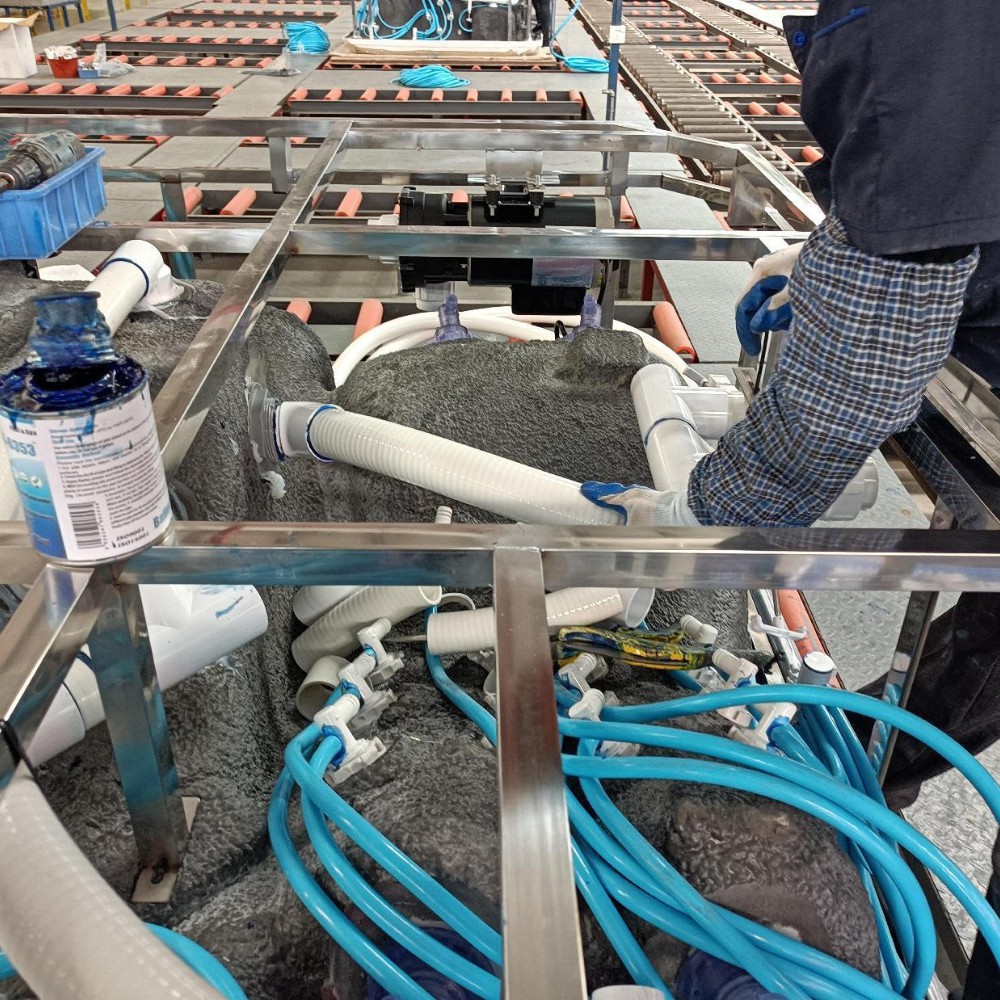

8.1 Strategic Pipe Arrangement

Sunrans uses high-pressure, flexible PVC piping that is glued and then clamped with stainless steel rings. We arrange our pipes strategically to ensure maximum water flow with minimal friction, which optimizes the performance of the pumps.

8.2 Balboa and Gecko Integration

We integrate world-class control systems from Balboa (USA) or Gecko (Canada). By using global standard components, we ensure that our B2B partners can easily source replacement parts locally, reducing the long-term cost of service.

9. Stage 8: The Crucial 48-Hour Wet Test (The Sunrans Guarantee)

Many manufacturers perform a quick 'dip test.' At Sunrans, we go much further. Every single unit—without exception—undergoes a 100% Full Water Test.

• Static Test: The spa is filled and left for 24 hours to check for any structural seepage.

• Dynamic Test: We run all pumps and blowers at maximum capacity for another 24 hours. This creates the highest possible vibration and pressure, testing every glue joint and seal to its limit.

• Final Inspection: After the water is drained, a quality inspector uses specialized lighting to check for any micro-fractures or surface imperfections before the cabinet is installed.


10. Conclusion: Partnering with a Manufacturer, Not Just a Supplier

Choosing a China spa manufacturer is about more than just finding a competitive price; it is about finding a partner committed to engineering excellence. The Sunrans hot tub manufacturing process is a testament to our scale and our dedication to the wellness industry.

By controlling every stage—from the American acrylic shell to the final 48-hour wet test—we provide our B2B partners with a product that builds their reputation as much as it builds ours. When you choose Sunrans, you are choosing a quality swim spa factory that values precision, durability, and the success of your business.
