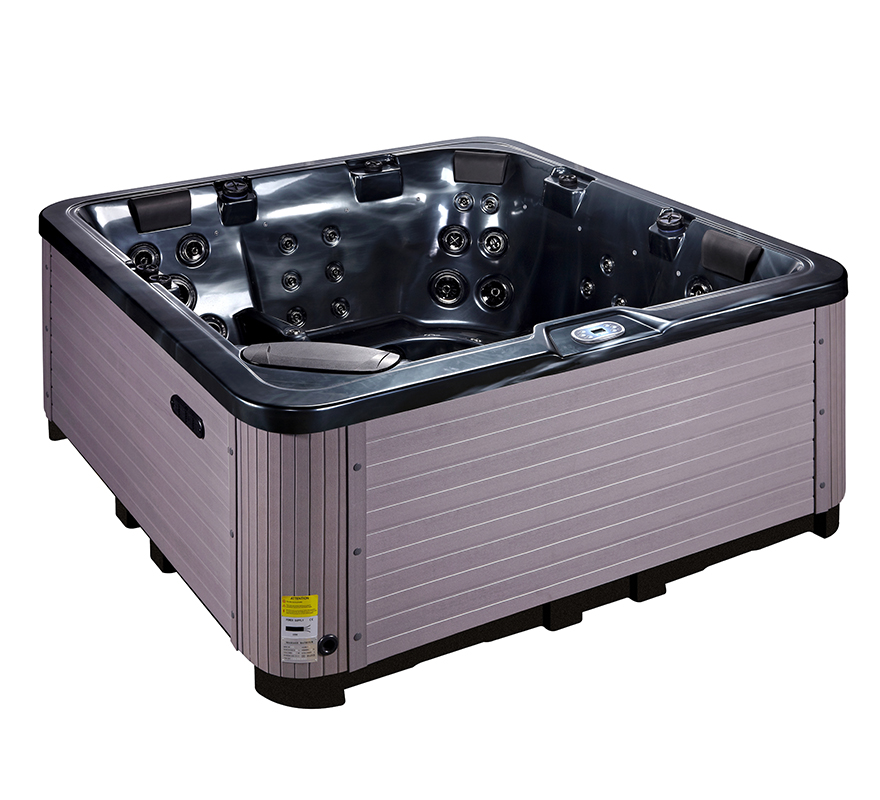

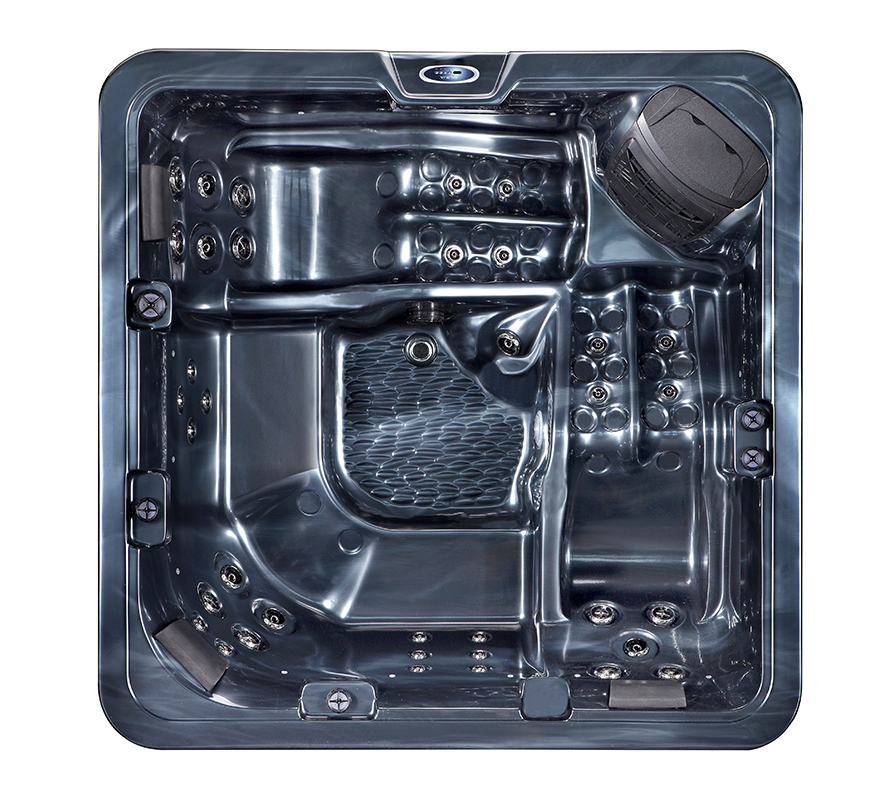

Model SR817C

Size:2200x2200x945mm

    seat capacity: 5 Persons

    Gross weight: 395kg

    Packing dimension: 2300x2300x1095mm

    Container load: 5pcs/20ft; 12pcs/40ft

  • Parameters

    seat capacity: 5 Persons

    Gross weight: 395kg

    Packing dimension: 2300x2300x1095mm

    Container load: 5pcs/20ft; 12pcs/40ft

Seating
Seating Capacity3 Persons
Lounge2 Persons
Dimensions/Weight/ Container load
Product dimension 2200x2200x945mm
Packing dimension2300x2300x1095mm
Weight - Dry/Filled395KG/ 1595KG
Water capacity316 US Gallon/ 1200Liters
Container load5pcs/20ft; 12pcs/40ft
Shell
Shell colors10 color available
Shell materialAristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump1*3HP( two speed)
Air bloweroptions
Electrics
Control systemChinese Pulan control
(P25B37 + PB554)
Max power consumption:3400Watt 14.8A in 230V 50Hz
With Plug & Play 16 amps
Heater (America Balboa brand)3KW/220-240VAC
Underwater lighting5 LED
Jet Configurations
Jets total (pc)40
5" Massage jets (pc)0
3.5" Massage jets (pc)16
1" Massage jets (pc)24
Air jets (pc)options
Filtration
Top mount filter (pc)1
Effective Filtration Area100 sq. ft.
Ozone Generator200mg/h
Features
Water diverter(pc)1
Air regulater(pc)3
Suctions (pc)1
Gate valves (pc)2
Drain valve (pc)1
Headrest pillows(pc)3
Support frameHigh strength ABS support column
Overflow outlet (pc)1
Skirt:Grey H03B/ Brown H04B/Black H06B
ABS base1


Model SR817C
Size:2200x2200x945mm
